Corrugated Carton Single Pass Printer , White Color UV Digital Inkjet Printing Machine

Product Categories
Shenzhen wonder printing system Co., ltd
Contact Now

Corrugated Carton Single Pass Printer , White Color UV Digital Inkjet Printing Machine

Brand Name : WONDERJET

Model Number : WDUV200-80A

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : OPTIONAL

Payment Terms : T/T

Supply Ability : 5 SETS/M

Delivery Time : 2 M

Packaging Details : L*W*H 6000*4600*1480mm

Model : WDUV200-80A

Printhead : 80 pieces

Ink type : Special UV curable ink

Medium distance : 2mm-4mm

Printing resolution : ≥180*360 dpi

Machine size : L*W*H 6000*4600*1480mm

Color model : Cyan,Magenta,Yellow,Black,White

Contact Now

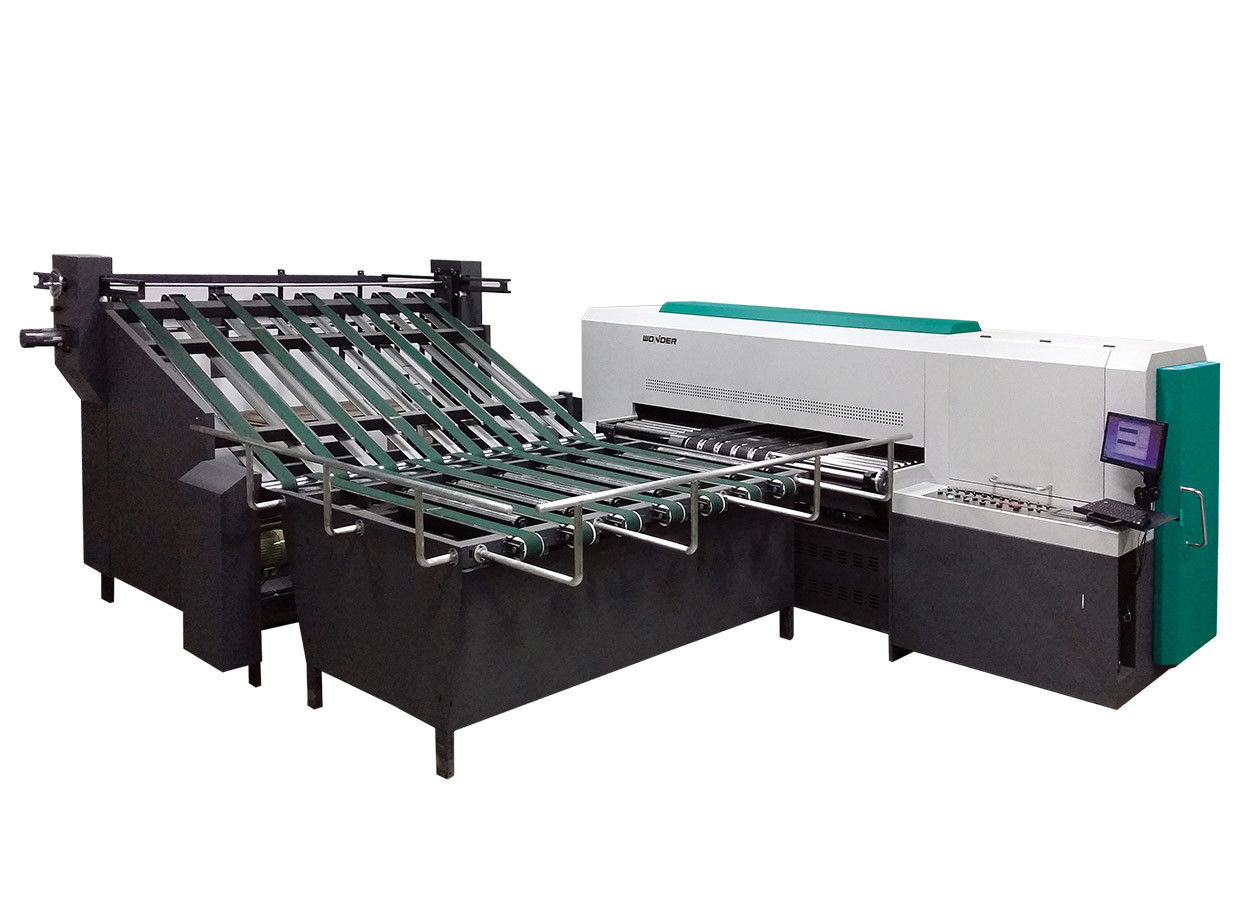

WDUV200-80A Industrial Single Pass Corrugated Carton white color UV Digital Inkjet Printing Machine

  • 600*300dpi ,max produciton speed 1.5m/s；

    600*600dpi ,max produciton speed 0.8m/s；

Article NO. WDUV200-80A
Printhead Piezoelectric high-procision printhead
Printhead quantity 80 pieces
Ink type Special UV curable ink
Color model Cyan,Magenta,Yellow,Black,White
Medium distance 2mm-4mm
Printing resolution ≥300*600 dpi
Printing efficiency 600*300dpi, Max 1.5m/s;
600*600dpi, Max 0.8m/s;
Material format Below 1800 mm * 2400 mm under auto feeding
Printing format Below (X)mm*2400mm under auto feeding (X=printhead quantity of single color plus 53.2mm)
Drying speed Dry once print out
Working environment 15ºC-32ºC Indoor,Humidity 20%-70%
Ink supply Automatic continuous ink supply
Feeding mode Automatic feeding
Material thickness 2mm-20mm( between 1.5mm and 20mm will need special Sun feeding system)
Thermostat system Thermostat system with patent
Operate system Professional RIP system,professional printing system,Windows 7 system with 32 bit operating system
Rated power About 18 KW power:AC380±10%,50-60HZ
Machine size L*W*H 6000*4600*1480mm
Weight Net wight:6300KG; Gross wight:6500KG

Corrugated Carton Single Pass Printer , White Color UV Digital Inkjet Printing Machine

Corrugated Carton Single Pass Printer , White Color UV Digital Inkjet Printing Machine

Description:

Without plate,without cleaning,computer intelligent operation,simple process,saving artificial materials;

Special LED light system,faster curing dry,improve printing effect a lot;

CMYK+W printing mode makes printing more colorful, keep the colorful printing and digital convenient operation meanwhile, achieve the perfect combination of high quality and high speed.

Corrugated Carton Single Pass Printer , White Color UV Digital Inkjet Printing Machine

©Above information just for reference, Shenzhen Wonder Printing System Co., ltd keep all ringhts reserved.

Subject to change without notice, final information subject to the contract.
